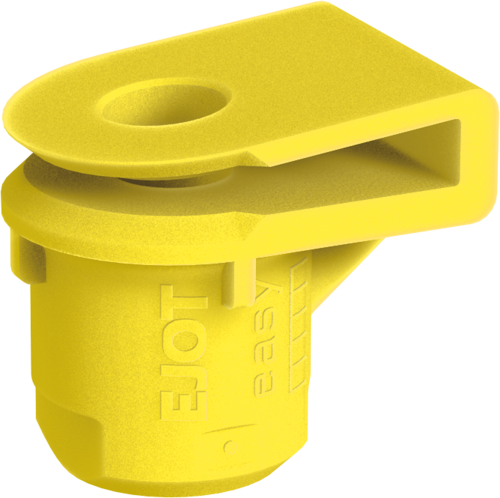

EASYboss®

EASYboss

Спецификация

  • Overview

    • Side snap-fit assembly
    • High axial load-carrying capacity due to large bearing surface
    • Reduced component weight
    • No corrosion
    • Consistent tightening torques
    • No catching of the parts
    • Easy, no-damage disassembly
    • Recyclable

Hotline

Applications Engineer


CAD & more на ejot.com

При первичной регистрации мы предоставляем в этой области данные CAD в различных форматах, а также PDF-файлы технических чертежей наших продуктов DELTA PT®, SHEETtracs® и ALtracs® Plus. Кроме того, CAD & more предлагает вам возможность спроектировать узлы с помощью программ прогнозирования или проверить их с помощью «ПРОВЕРКИ ПРИМЕНЕНИЯ». Кроме того, вы можете скачать последние брошюры о продукции, технические публикации и стандарты компании EJOT.


CAD & more

The most suitable clip

Development focus of the EJOT EASYboss® was the design of an all-around improved alternative to the still commonly used sheet metal clips. Main fields of application for the EASYboss® are designs where direct assembly is not possible. Reasons for this are insufficient installation depths in the component or other tool related conditions. Further possible uses are in thin-walled components made of different materials, for example thin sheets. The EASYboss® is assembled through snap fitting sideways to the fastening direction from the edge of the part or through an access hole in a flat component. Tolerances of the hole pattern can be reliably compensated by the fastening element. For varying material and hole wall thicknesses a range of different sizes are available. In particular the combination of EJOT DELTA PT® screw and EASYboss® offers ideal prerequisites for the direct assembly into plastic.
